磷酸铁锂电池电池系统REVO单相UPS锂电池系统

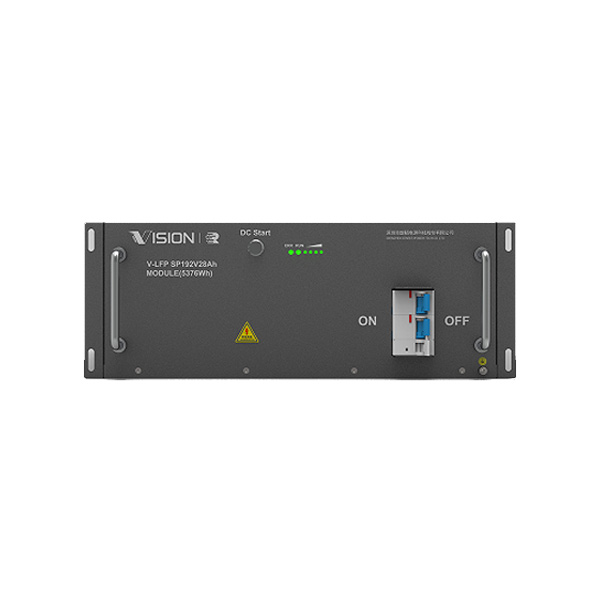

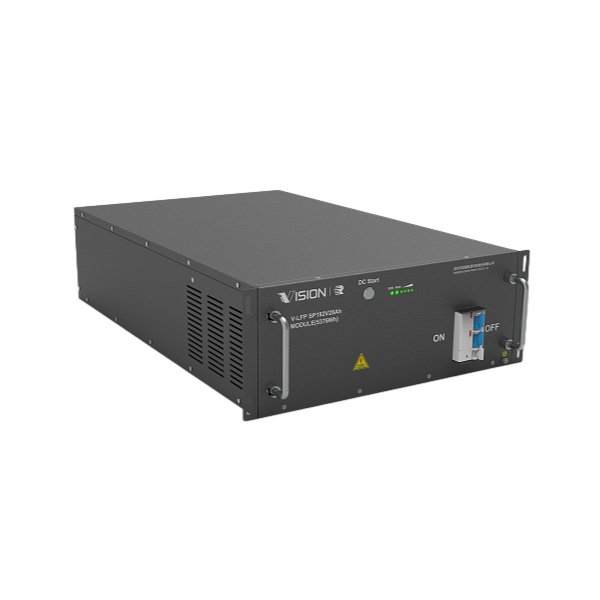

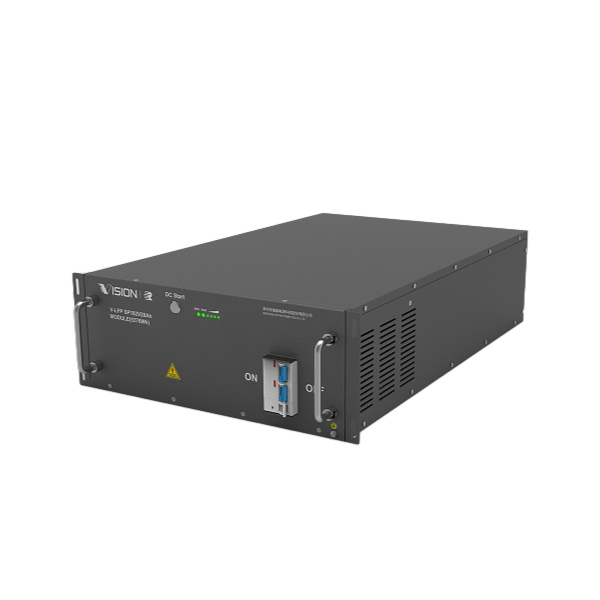

REVO锂电单相SP系列192V28AH
REVO单相UPS锂电池系统
REVO单相UPS锂电池系统
REVO锂电单相SP系列192V28AH
REVO单相UPS锂电池系统
REVO单相UPS锂电池系统

REVO单相UPS锂电池系统

  • Overview:
    REVO 系列为雄韬集团自主研发的适配于各类 UPS 的锂电池产品。 REVO锂电单相SP系列为集成式一体机，具有体积小，维护便利，配置灵活等特点。
  • Application Scenarios:
    1. 数据中心
    2. 金融机构
    3. 轨道交通
    4. 无市电供应地区的电力备份

Battery Quick Facts

  • 电池类型
    电池类型
    磷酸铁锂电池
  • 放电效率
    放电效率
    ＞90%
  • 设计寿命
    设计寿命
    15年

Key Features

  • 模块化设计
    支持电池模块内置或外置安装，便于集成与空间优化。
  • 多级管理架构
    兼容二级/三级BMS系统，支持电池组间并联运行及后期灵活扩容。
  • 多协议通信兼容
    支持CANBUS与MODBUS协议，便于与UPS主机及上位机系统无缝对接。
  • 高精度监控能力
    实现电压精度控制至±3mV，温度管理精度达±1℃，保障系统运行稳定性与电芯一致性。

Industry Applications

Specification

型号 容量 电芯型号 串并联 尺寸（mm）长*宽*高 标称能量（kwh）
SP12-9 12.8V9AH 12.8V9AH 4S1P 152*65*98 0.115
SP12-100 12.8V100AH 3.2V100AH 4S1P 330*171*220 1.28
SP12-200 12.8V200AH 3.2V100AH 4S2P 522*238*223 2.56
SP36-50 38.4V50AH 3.2V50AH 12S1P 442*350*189 1.92
SP36-100 38.4V100AH 3.2V100AH 12S1P 442*420*177 3.84
SP36-200 38.4V200AH 3.2V100AH 12S2P 440*610*174 7.68
SP48-50 48V50AH 3.2V50AH 15S1P 442*470*149 2.4
SP48-100 48V100AH 3.2V100AH 15S1P 442*470*149 4.8
SP51.2-50 51.2V50AH 3.2V50AH 16S1P 442*500*177 2.56
SP51.2-100 51.2V100AH 3.2V100AH 16S1P 442*500*177 5.12
SP51.2-200 51.2V200AH 3.2V100AH 16S2P 442*900*149 10.24
SP72-50 72V50Ah 3.2V50AH 23S1P 440*650*174 3.68
SP72-100 72V100Ah 3.2V100AH 23S1P 440*650*174 7.36
SP192-9 192V9Ah 12.8V9AH 15S1P 442*800*149 1.72
SP192-28 192V28Ah 3.2V6AH 60S5P 440*700*174 5.37
Swipe Left or Right to View the Full Table

FAQs

  • q电池无法充电是什么原因？
    a
    可能原因：
    1. 充电器或UPS主板故障。
    2. 电池过度放电，导致触发保护机制（电压低于安全截止值）。
    3. 电池管理系统（BMS）故障。

    解决办法：
    1. 检查充电器输出电压是否与电池匹配。
    2. 尝试使用专业设备激活电池。
    3. 联系售后服务，检测电池管理系统或更换电池。
  • q通信，电压，温度自检失败是什么原因？
    a
    可能原因：
    1. 接线异常。
    2. 拨码设置错误。
    3. 网线接触不良。

    解决方法：
    1. 检查CBMS与GBMS之间的网线连接是否正常，排除网线或接口硬件问题。若LCD显示CBMS通信故障，通常是因为CBMS与GBMS之间的网线连接不正确。
    2. 检查并机CBMS的IP拨码开关是否设置正确，同时确保启用GBMS与末尾电池柜CBMS的CAN/485终端电阻。
    3. 检查并机间的网线连接是否正常，重点检查是否存在接触不良现象。
